INNOX3D DIY 2.5 Gal tank conversion kit

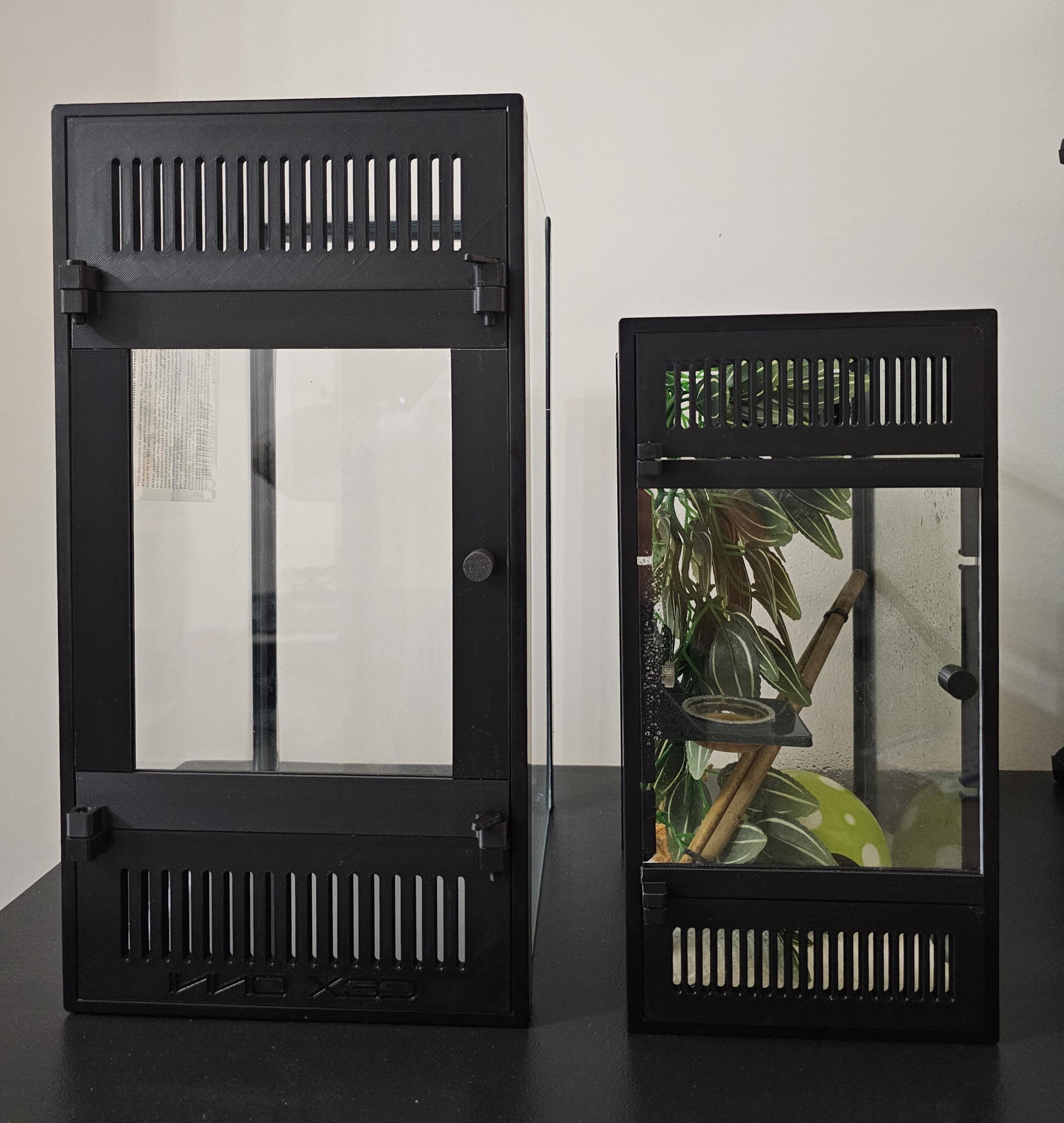

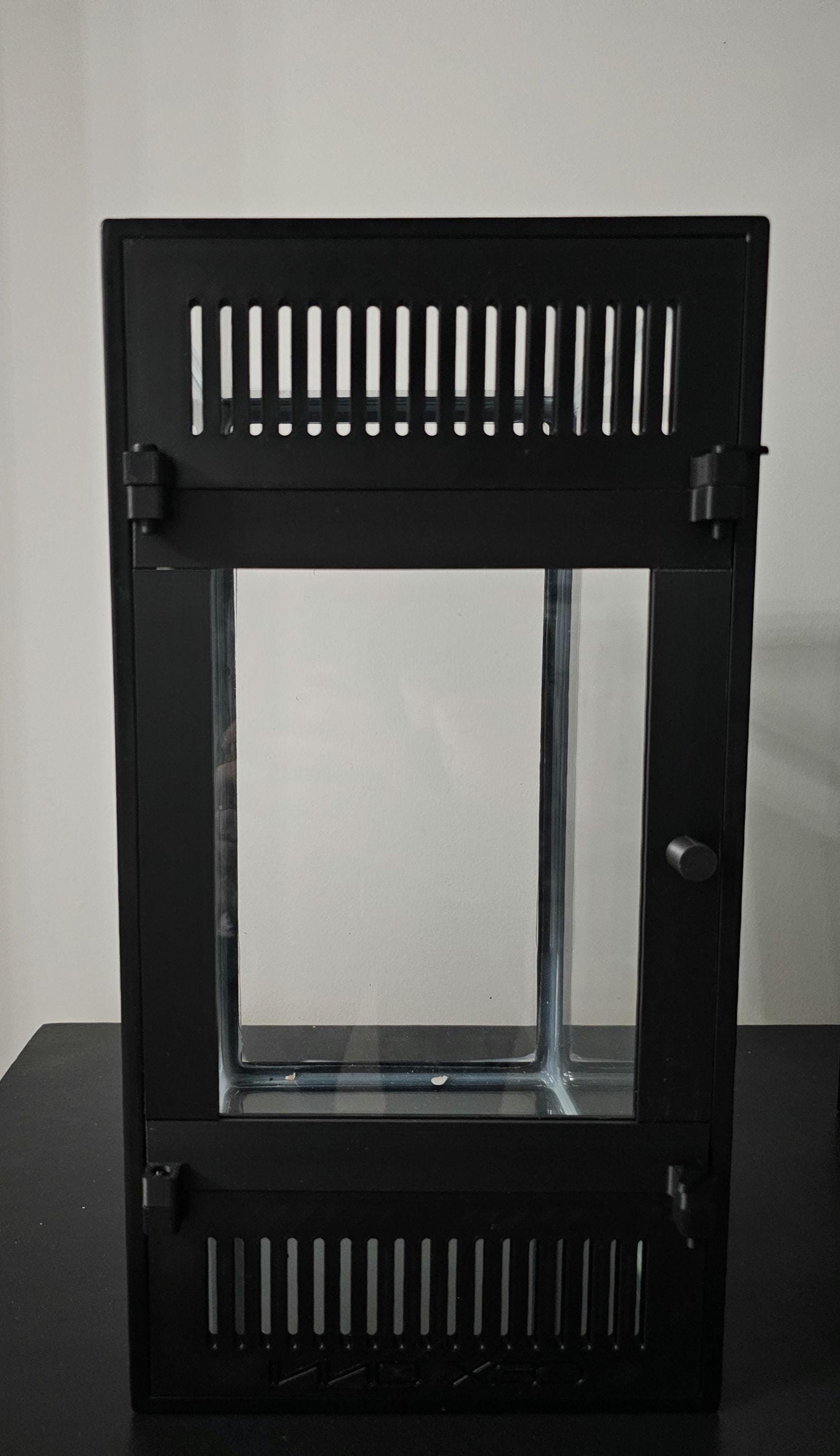

Innox3D DIY 2.5 gal vertical terrarium conversion kit. (3D printed)

Specifically made for Aqueon 2.5 gallon tanks
Will fit most standard framed aquariums (12.25 in L x 6.25 in W x 8.25 in H)
*width is important, make sure your tanks frames width is 6.25in OD & 5.5 in ID*

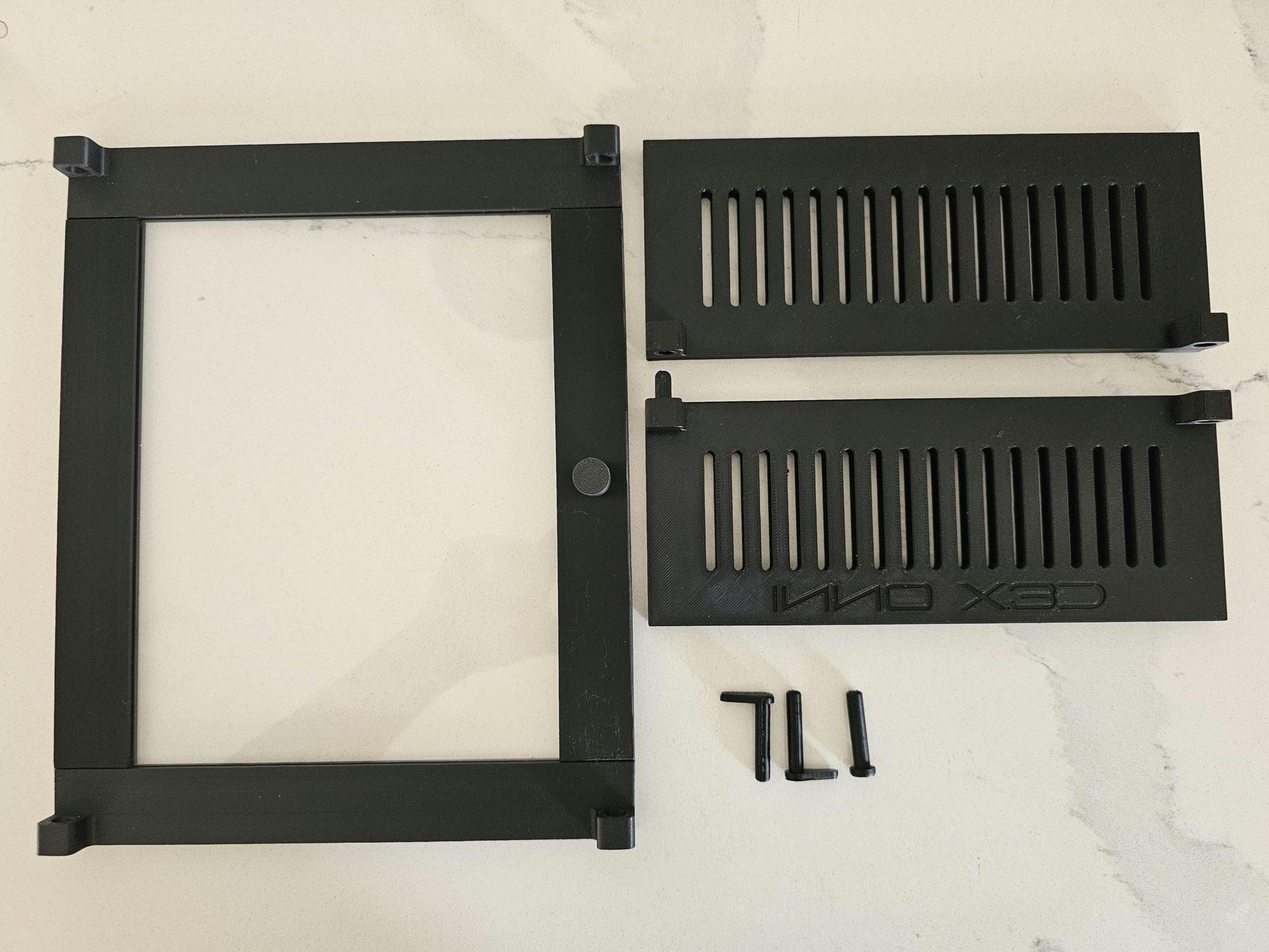

Pieces include:
Top vent (x1)
Bottom vent (x1)
Door frame + 3 mm plexiglass pre-assembled (x1)
Hinge Pins (x1)
Locking Pins x(2)

Perfect kit to create a arboreal terrarium for tree frogs, gargoyle geckos, crested geckos, day geckos, and much more.

**Will not work with a rimless tank**

---

🛠️ Aquarium Vent Installation Guide

Materials Needed:
- Aquarium-safe silicone or non-toxic sealant

---

Step 1: Install Top Vent Piece
- Apply a continuous bead of adhesive along the top rim of the tank.
- Carefully place the top vent piece onto the adhesive, pressing it firmly into position.

Step 2: Install Bottom Vent Piece
- Repeat the same process on the bottom rim of the tank.
- Ensure both top and bottom vent pieces are securely attached and aligned.

Step 3: Attach the Door
- Angle the door so the hinge aligns with the bottom vent pin.
- Gently pop the door into the space between the top and bottom vent pieces. Install the top hinge pin.

Step 4: Curing Time
- Allow the adhesive to air out and cure for 24–48 hours.
- Before introducing any animals, confirm that there are no lingering adhesive odors inside the tank to ensure a safe environment.

---
